Balance 540 Sailing Catamaran

The Balance 540 sailing catamaran represents the next step in the evolution of the acclaimed Balance range. Designed and engineered by Du Toit Yacht Design and built by Balance Catamarans Cape Town, the 540 builds on the legacy of the highly successful 526 while introducing more speed, greater volume, and advanced composite innovation.

Founded by Phil Berman, Balance Catamarans has established a global reputation for high-performance blue-water sailing catamarans. The Balance 540 continues this philosophy, with Du Toit Yacht Design responsible for the naval architecture, structural engineering, deck design, and interior layout integration.

Launched as part of the new Carbon Cross series — including the Carbon Cross, Carbon Cross +, and Carbon XP variants — the 540 is available with VersaDrive hybrid propulsion and represents one of the most advanced performance cruising platforms in its class.

Performance and sail plan

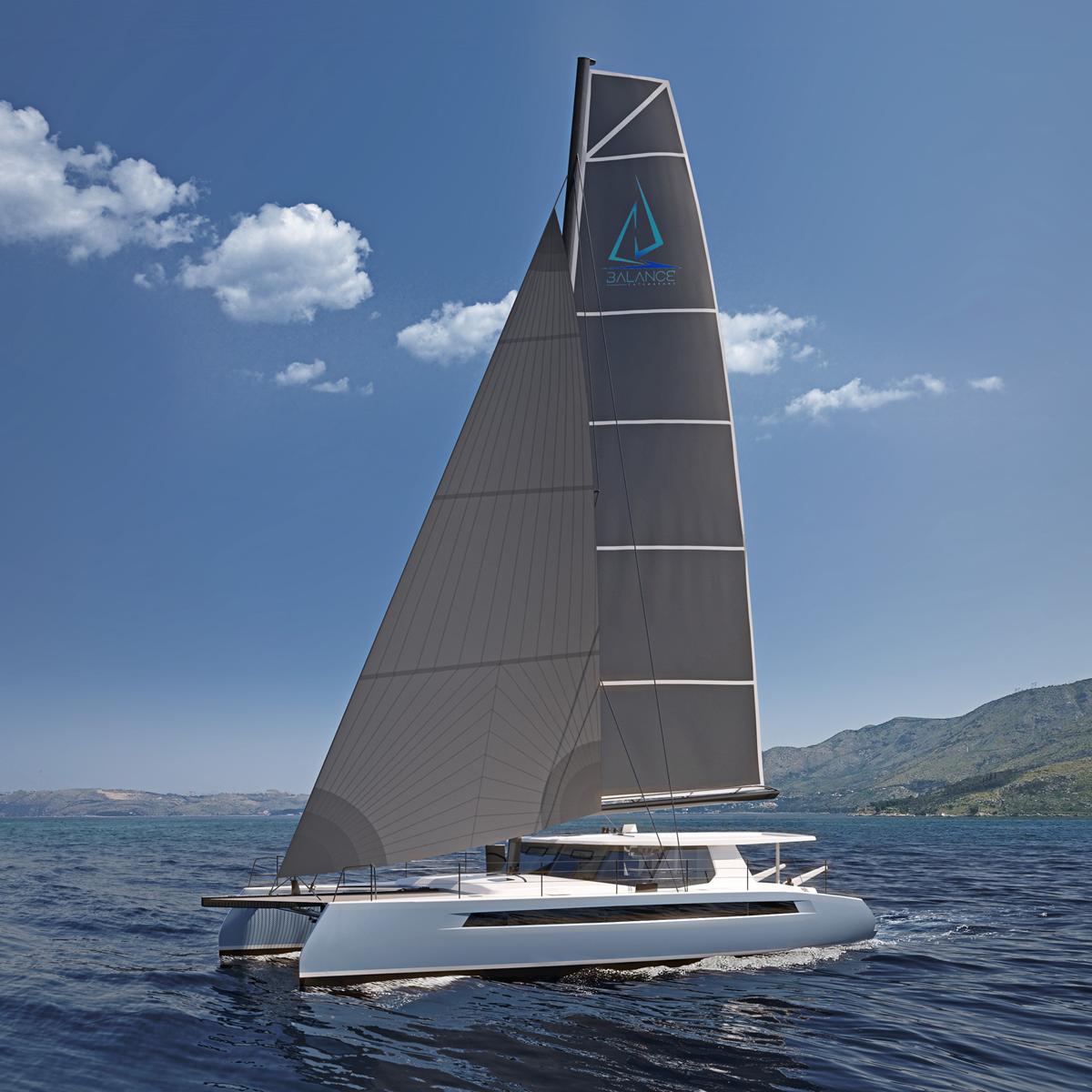

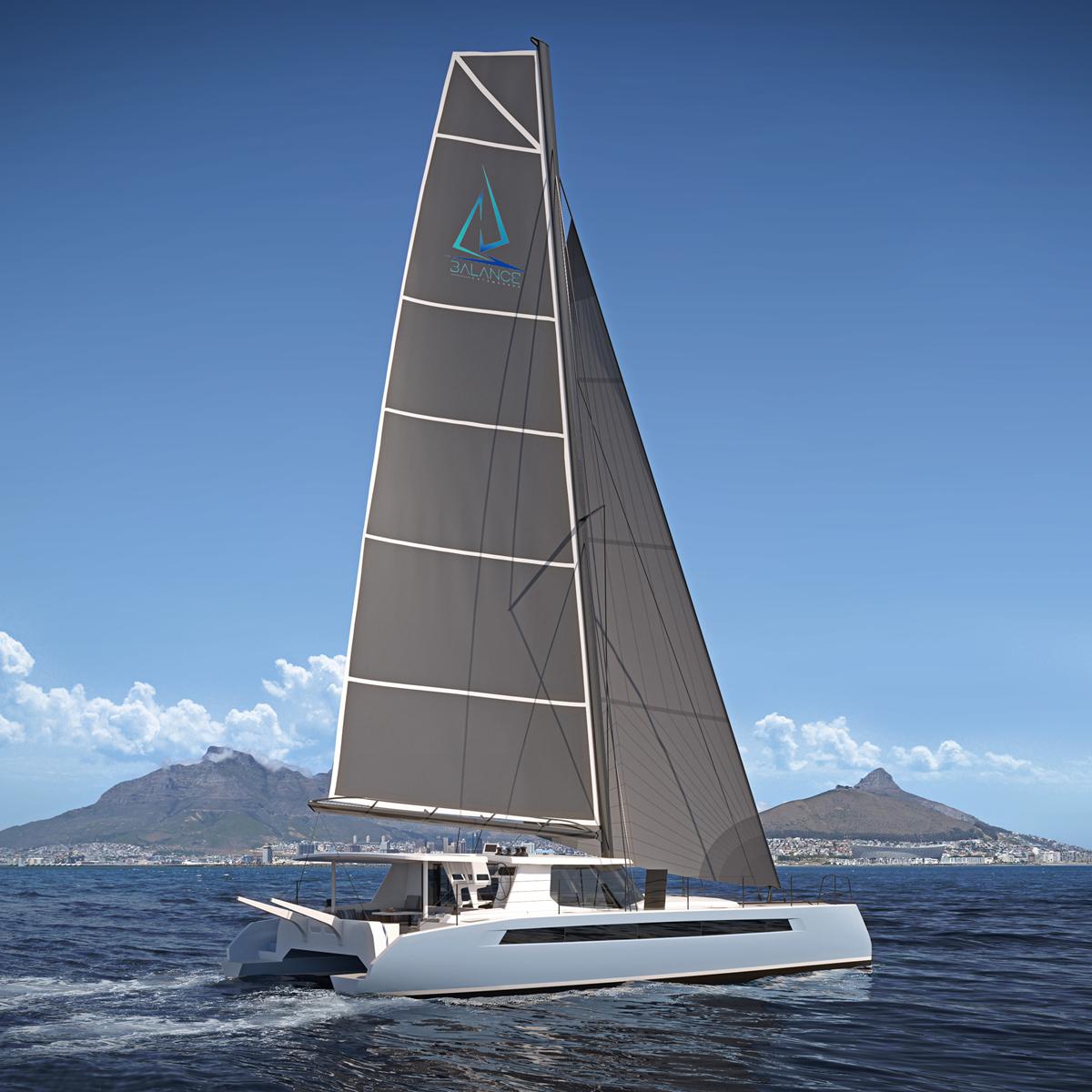

With carbon-reinforced foam-core hulls and a powerful 179.1 m² sail plan, the Balance 540 delivers exceptional sailing efficiency across a wide wind range.

In light airs, she sails at or above windspeed while heavier vessels are motoring. As breeze builds, her three furling headsails — overlapping genoa, self-tending solent, and reacher — allow effortless power management for short-handed sailing.

Her carbon forebeam, longeron, daggerboards, trunks, and high-performance rudders provide minimal leeway, excellent pointing ability, and thrilling downwind acceleration. Off the wind, she is capable of controlled surges into the 20-knot range while maintaining composure and helm balance.

Performance predictions are modelled using Velocity Prediction Programs (VPPs) developed by the Wolfson Unit at the University of Southampton, calculated at realistic cruising displacements rather than theoretical lightship weights.

Carbon Cross construction

The Balance 540 is built using 100% epoxy construction with a full Carbon Core structural system. Her entire substructure is carbon, including:

• Bulkheads
• Cabin soles
• Partition panels
• Primary mast bulkhead
• Aft beam
• Daggerboards and trunks
• Rudders (including stocks and quadrants)
• Carbon forebeam and longeron

This advanced carbon architecture produces a lighter, stiffer, stronger platform optimised for offshore sailing. The refined wave-piercing bow profile and new hull tooling further enhance performance and sea-keeping.

Du Toit Yacht Design’s deep experience in advanced composite optimisation ensures structural integrity without unnecessary weight, delivering speed with long-term durability.

Hybrid propulsion and energy autonomy

The Integrel VersaDrive Hybrid system reduces fossil fuel consumption by up to 25% while charging a 36 kW / 48 V lithium battery bank at rates of up to 15 kW per engine. Up to 3,000 watts of solar power further enhances onboard autonomy.

The 540 can also be specified with Integrel E-Power alternators, eliminating the need for a standalone generator, reducing fuel burn, lowering maintenance, and improving onboard safety.

Interior and liveability

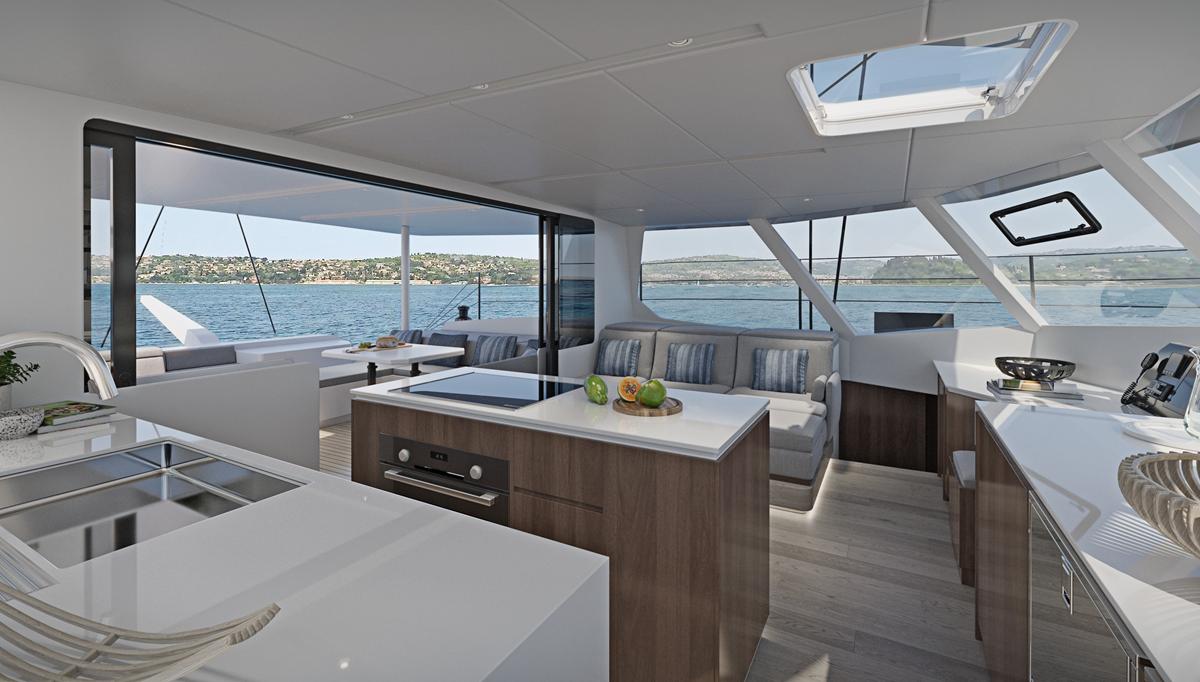

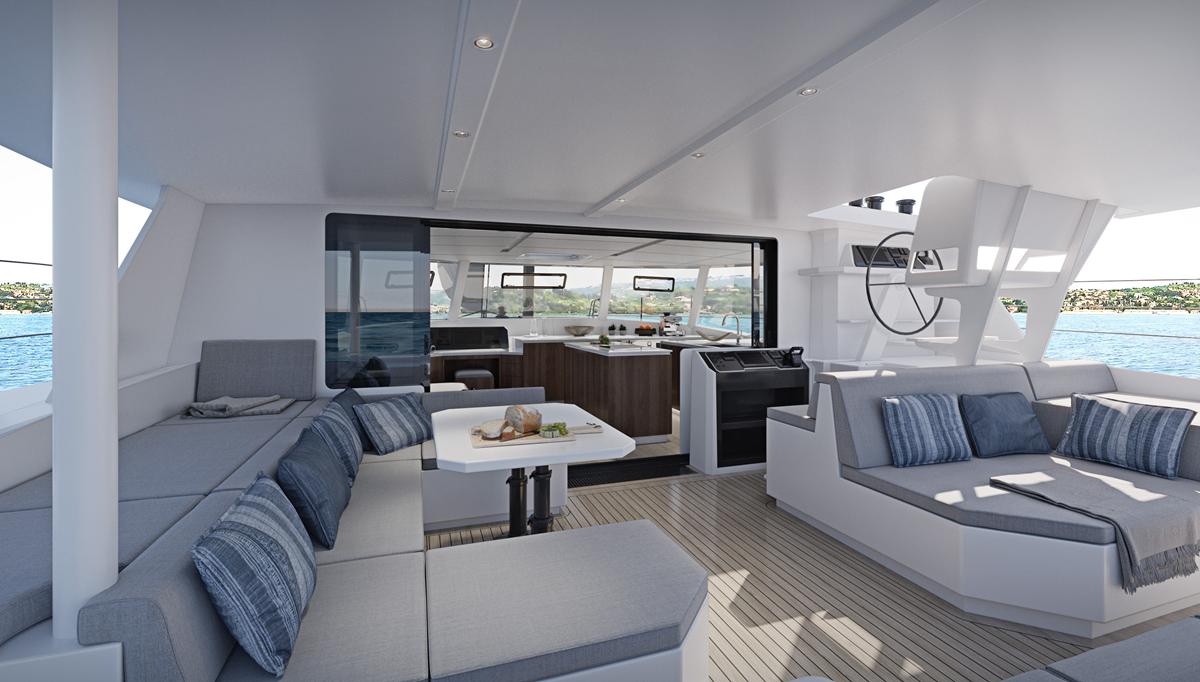

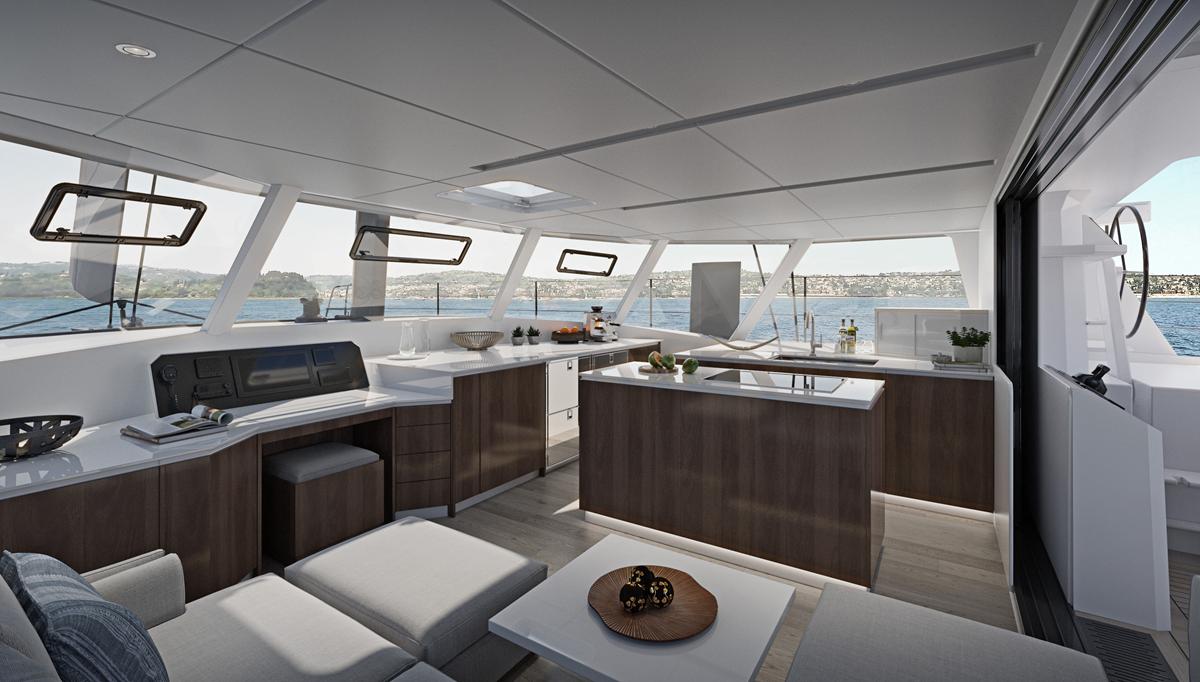

Despite her performance credentials, the Balance 540 is designed for extended blue-water living. The saloon offers panoramic visibility, excellent ventilation, and seamless flow between cockpit and helm areas.

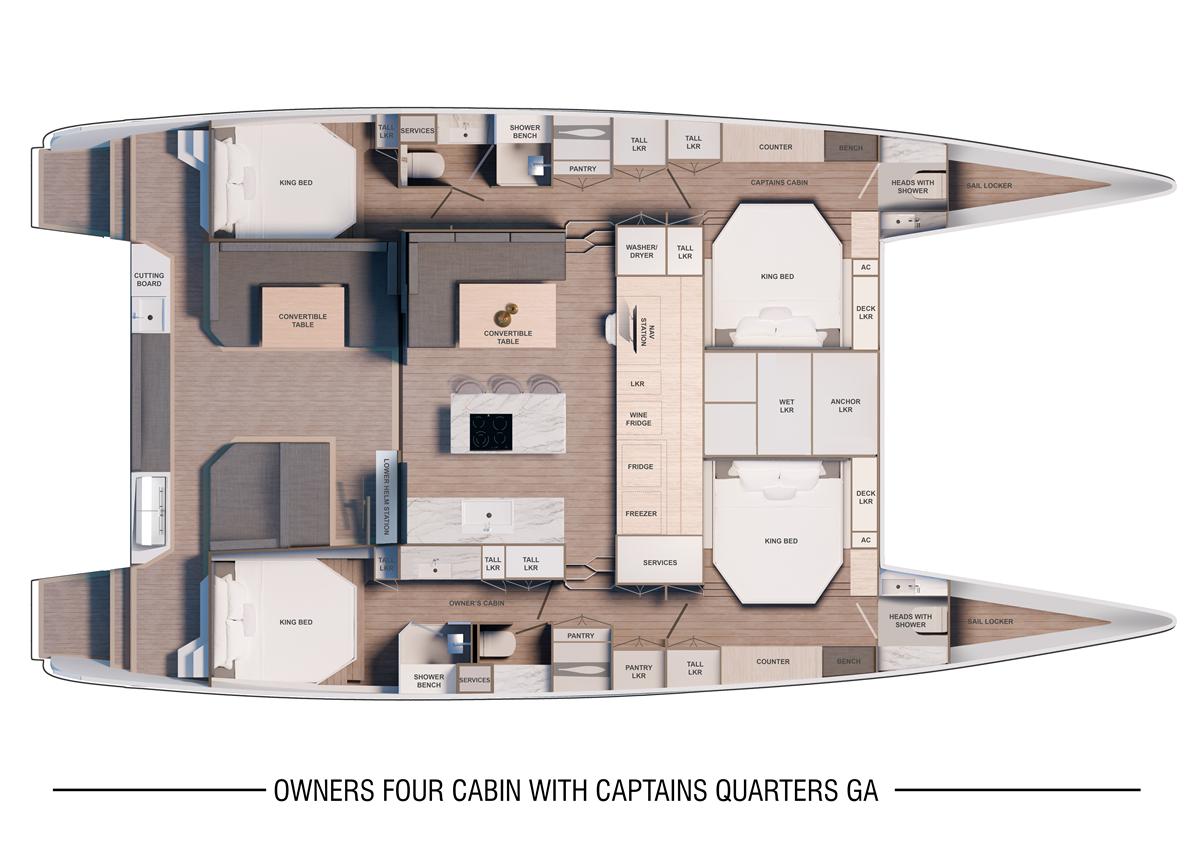

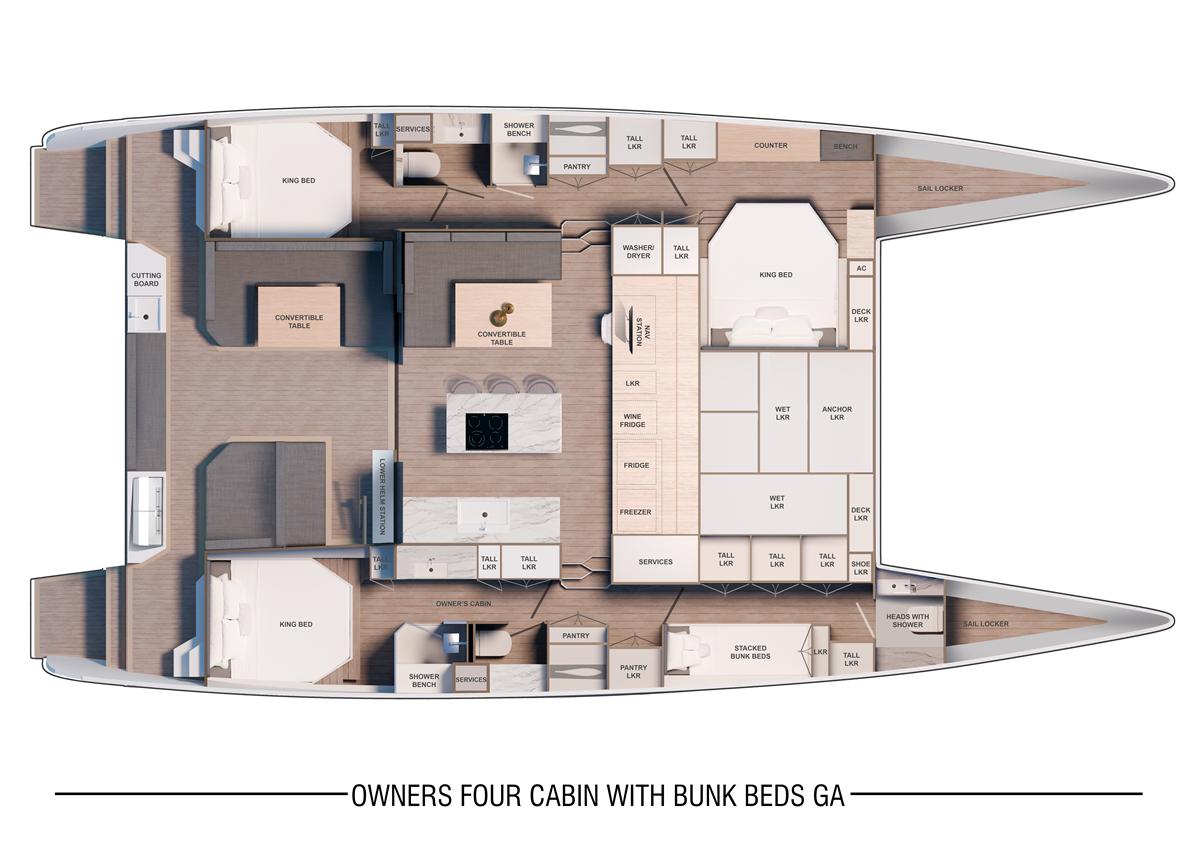

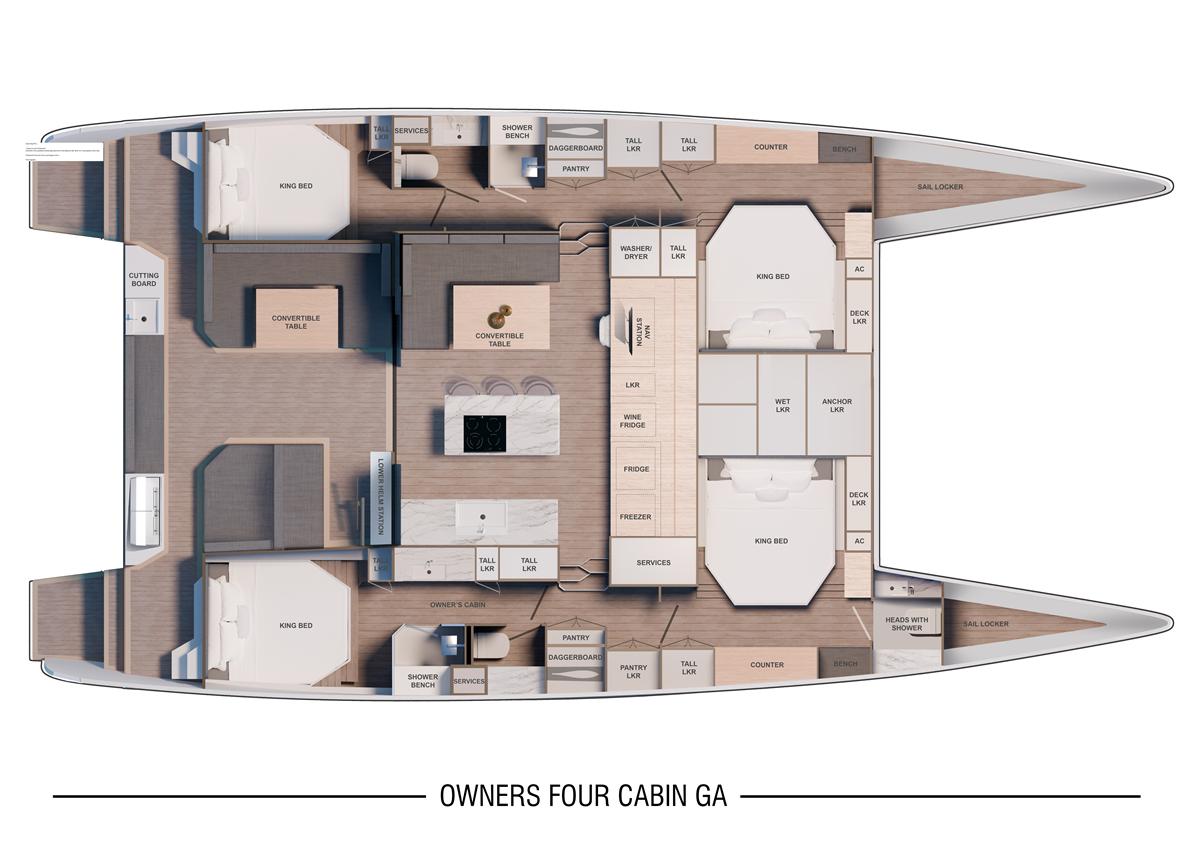

Layouts allow for generous owner and guest accommodation, with refined joinery and carefully considered ergonomics throughout. The 540 is engineered to be easily sailed by a couple, yet robust enough for serious ocean passagemaking.

The result is a yacht that reflects Du Toit Yacht Design’s core philosophy: performance without compromise.
